Product Description

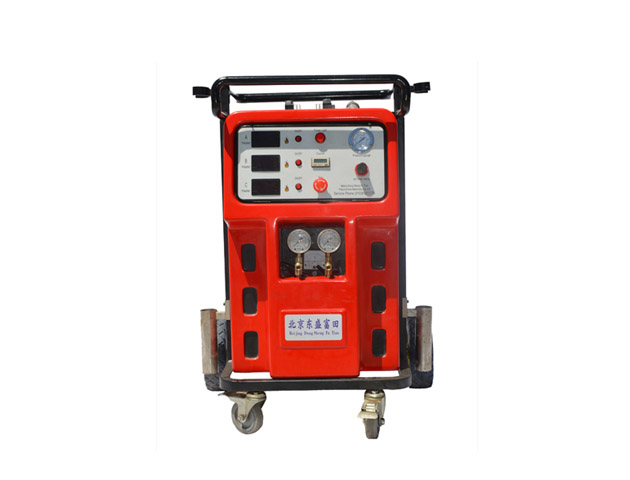

DF-15/32 polyurethane spray foam system is suitable for onsite spraying and perfusion, and is well designed in combination with practical onsite constrution. It is portable and of high wattage, free of cleanup. Its close frame design enables it to work in complicated onsite condition and worse environment.

Features

• Air driven Motor
• Precise Metering Pumps
• Advance Heating System
• Self-cleaned Sealing

Technical Specification

• Max.Fluid Temperature : 90℃
• Max. Output : 8L/min
• Max. Fluid Working Pressure : 2175 psi (15Mpa, 150 bar)
• Heater Wattage : 14 kw
• Max. Hose Length : 60 m
• Power Requirements : 380V-40A
• Drive Mode :  Pneumatic/Air-driven
• Dimensions : 650mm*680mm*900mm
• Weight: 185 kg

Standard Configuration

• Base machine  x  1
• Transfer pumps  x  2
• Spay gun  x  1
• 15-meter insulating heated hose  x  1
