Product Description

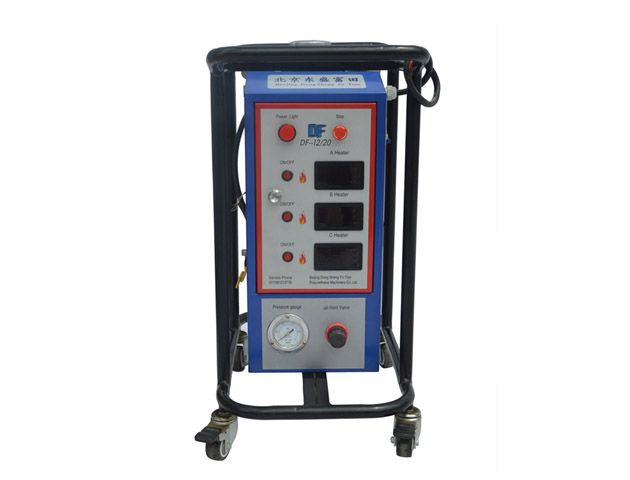

DF-12/20 polyurethane spray foam system is suitable for onsite spraying and perfusion, and is well designed in combination with practical onsite constrution. It is portable and of high wattage, free of cleanup. It is widely used in gap caulking, lab test, local spraying etc.

Features

• Air-driven Motor
• Light weight and portable
• Flexible and maneuverable
• Advance Heating System
• Self-cleaned Sealing

Technical Specification

• Max.Fluid Temperature : 50℃
• Max. Output : 2L/min
• Max. Fluid Working Pressure : 1015 psi (7Mpa, 70 bar)
• Heater Wattage : 3 kw
• Max. Hose Length : 8 m
• Power Requirements : 220V-16A
• Drive Mode :  Pneumatic/Air-driven
• Dimensions : 325mm*575mm*500mm
• Weight: 25 kg

Standard Configuration

• Base machine  x  1
• Transfer pumps  x  2
• Spay gun  x  1
• Insulating heated hose  x  1
